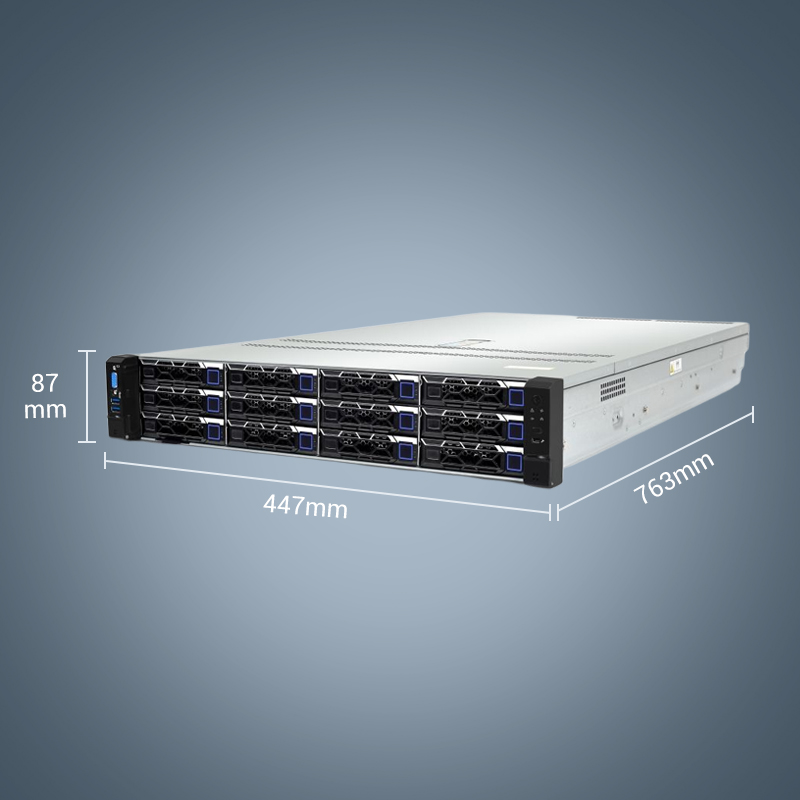

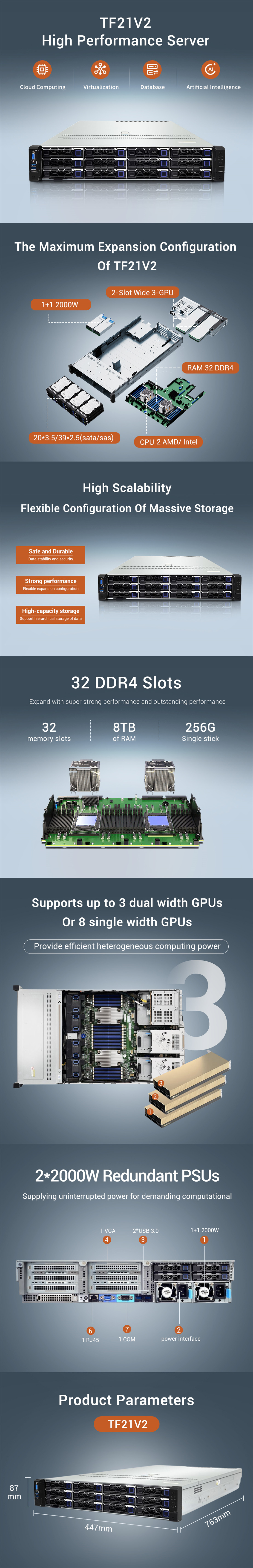

TF21V2
FLAGSHIP RACK SERVER

Extreme Performance, Meets Critical Application Requirements

Supports 3rd Gen Intel® Xeon® Scalable Processors, adopts 10nm process and Sunny Cove new microarchitecture;

Support up to 3UPI interconnection, bus bandwidth up to 11.2GT/s;

Support 8 memory channels per CPU, up to 32x DDR4 memory, memory frequency up to 3200MHz

Supports PCIe 4.0, and the number of PCIe lanes is increased by 33% compared with the previous generation, which greatly improves the scalability of the system.

High Scalability, Flexible Configuration

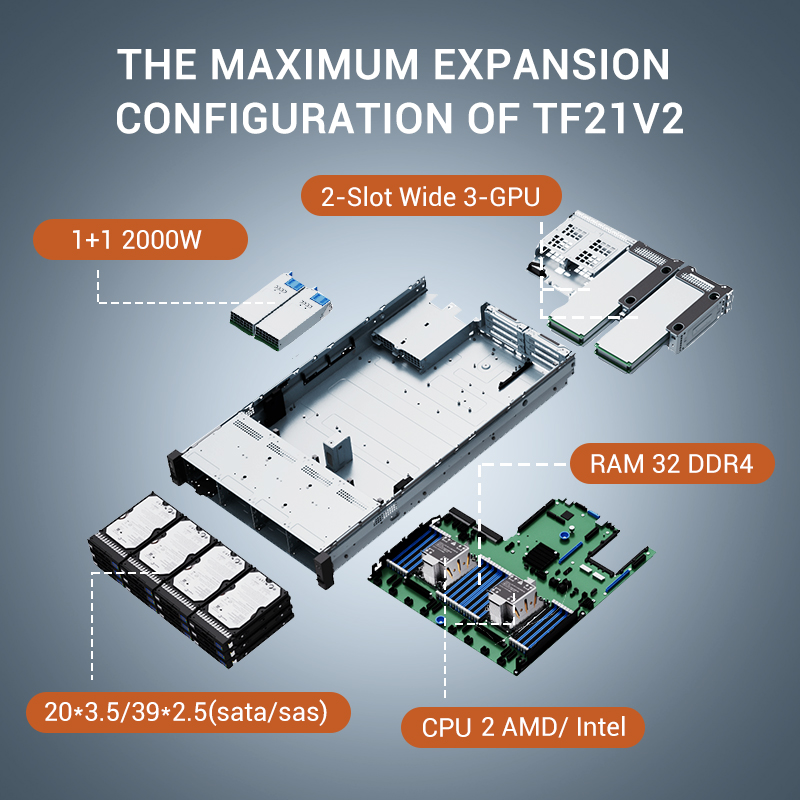

Decoupler design of hardware modules enables flexible configuration of computing, storage and network to meet different business requirements

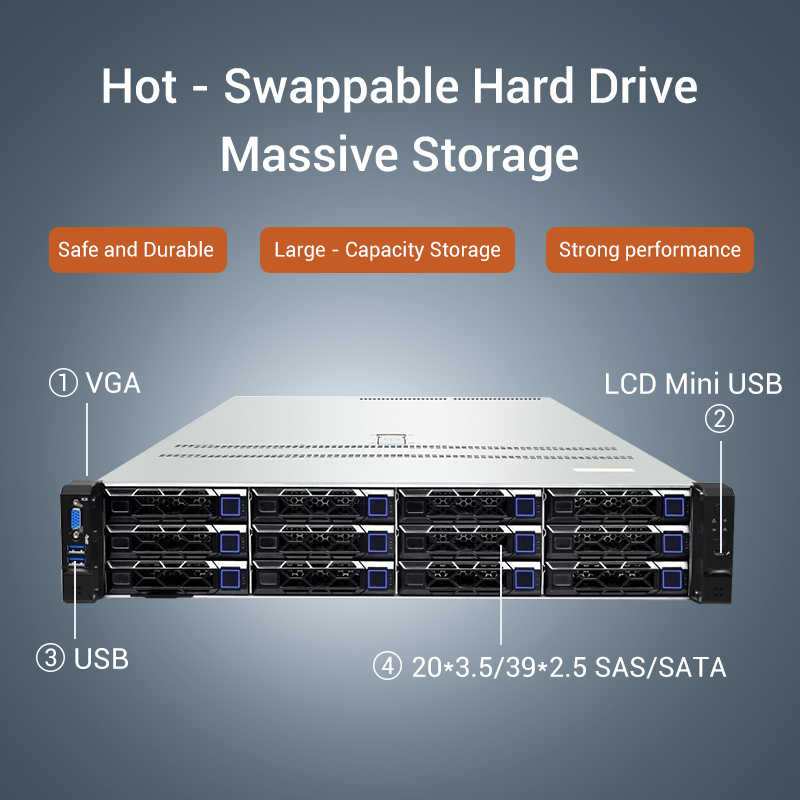

Supports up to 20x 3.5" hard disks or 39x 2.5" hard disks;

Supports up to 10x PCIe 4.0 expansion slots, and supports up to 6x PCIe FHFL devices;

Supports OCP3.0 NIC, optional extension 4×1GbE / 2×10Gb SFP+/ 4×10Gb SFP+/ 2×25Gb SFP28 network configuration.

Stable, Reliable, Intelligent Management

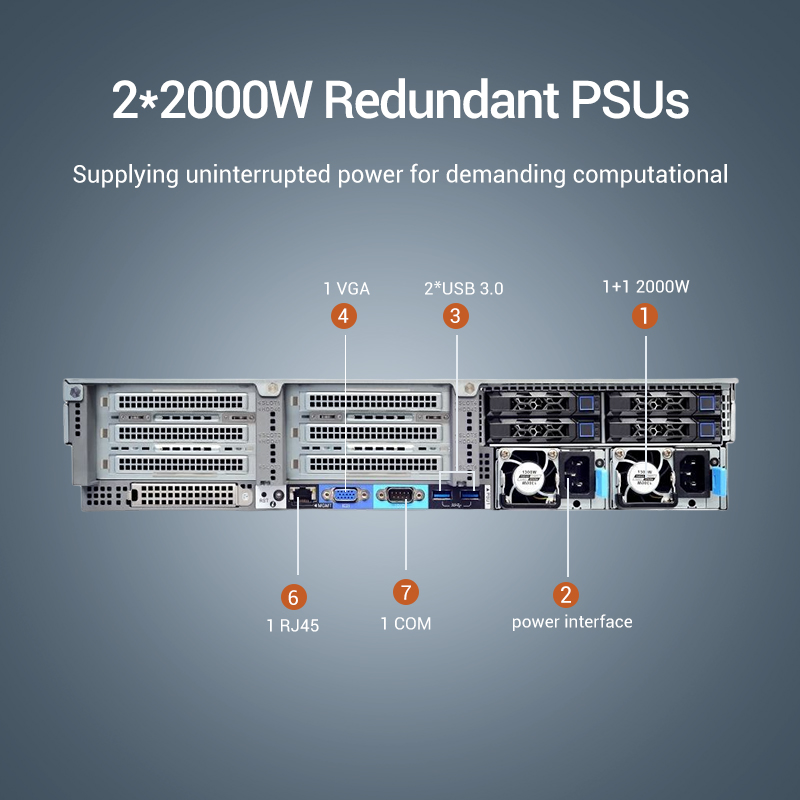

The key components of the system adopt redundant and hot-swap design, support tool-free disassembly and assembly, improve maintenance efficiency and system availability;

Integrated intelligent management chip, provides an open management platform, supports IPMI2.0, Redfish, SNMP and other management protocols;

Support various management functions such as remote KVM, virtual media, key component status monitoring, abnormal alarm, etc., realizing comprehensive remote system intelligent management.
