The TG990V3 is a flagship all-in-one AI training and inference server that supports 8 high-performance OAM GPU modules compliant with the UBB 2.0 specification. It is compatible with 4th or 5th Gen Intel® Xeon® Scalable Processors and delivers exceptional performance, high scalability, and superior reliability. This server is ideally suited for large scale distributed training and inference, high-performance computing (HPC), all-in-one large model systems, and other application scenarios.
EXCEPTIONAL PERFORMANCE AND FLEXIBLE TOPOLOGY
Supports 8 high-performance OAM GPU modules, featuring high-speed full interconnectivity between GPUs to meet the demanding inter-card communication requirements of large-scale AI applications.
Supports both high-performance and balanced topologies, delivering high communication bandwidth and scalability to meet diverse scenario requirements.
MASSIVE SCALABILITY AND EXTREME I/O
Featuring extreme I/O expansion with an industry-leading ratio of 8 GPUs to eight 400G ports to sixteen U.2 drives (8:8:16).
It supports high-speed scale-out interconnect and storage communication, facilitating large-scale distributed training and inference workloads.
Supports up to 14 PCIe 5.0 slots. Supports up to 20 U.2 NVMe drives.
MODULARITY, EASY MAINTENANCE, HIGH AVAILABILITY
The server adopts a fully modular design, including GPU compute modules, CPU compute modules, fan modules, storage modules, and power modules. Each module can be independently plugged and unplugged for maintenance.
The system's critical components feature redundant and hot-swappable designs, support tool-free installation and removal, and enhance system availability and fault maintenance efficiency.
SMART MANAGEMENT, OPEN STANDARDS
The system integrates an intelligent management chip and provides an open management platform, supporting multiple management protocols including IPMI 2.0, Redfish, and SNMP.
It supports various management functions including KVM, virtual media, status monitoring of key components, and exception alerts, providing comprehensive remote system-level intelligent management capabilities.
TECHNICAL SPECIFICATIONS
| Features | Specifications & Parameters |
| Product FormFactor | Standard 8U Rackmount |
| CPU | Supports two 4th or 5th Gen Itel® Xeon® Scalatle Processors with a maximum TDP of 350W |
| Memory | Supports 32 DDR5 memary sbts with speeds up to 5600MT/s,compalitle with RDIMM and 3DS RDIMM modules |
| RAID Cards | Integrated 6Gb/s SATA controler, with optional support for 12GIs SAS HBA and 12Gbs SAS RAID cards |
| GPU | B OAM GPU modules complart with UBB 2.0 specTication, wilth maximum TDP of 700W |
| PCleExpansion | Supports up to 14 PCle 5.0 standard slotsDptional suppart for one OCP 3.0 network card, with PCle 5.0 x8 or x16 Interface options, featuring NCSIlunctionality |

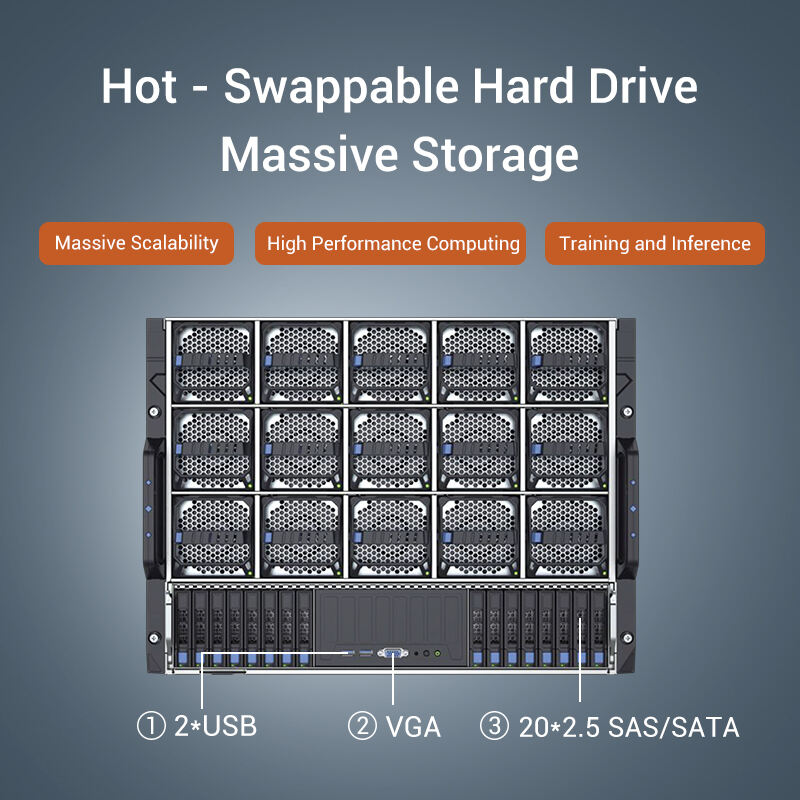

| Local Stomge | Frort: Supparts up to 16 x2.5"difvesRear Supports up to 4 x2.5° dilvesDnboard: 2 x M.2 slats(SATA3.0/PCle 4.0 x4, 2280&22110) |
| I/O Ports | Frort:1 x VGApart, 2 xUSB 3.0 portsRear: 1 x VGA port,2 x USB 3.0 ports, 1 x serial port, 1 x RJ45 management port |
| System Fans | Frort: 15 xhigh-performancefans with N+1 redundancyInternal: 4x high-performance fans with N+1 redundancy |

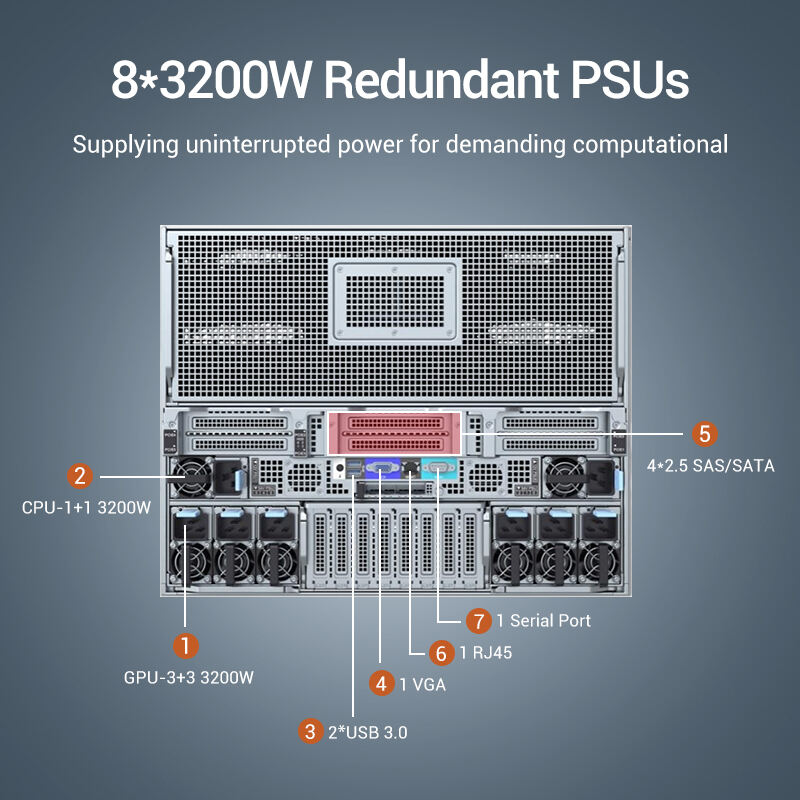

| Power Supply | GPU Compute Module Power: 6 x 54V power supplies (2700W or 3200W optionag, 3+3 redundancy supportedCPU Compute Module Power: 2x 12V power supplies (2000W, 2700W, or 3200W optional), 1+1 redundancysupported |
| ManagementFeatures | Integrated AST2600 BMC management chip supporting IPMI 2.0, Redfish, SOL, KVM, and virtual medalunctionalifies.Provides 1 x 1Gbps RJ45 dedcated managementport. |
| SecurityFeatums | Dptional TPM/TCM securty module, chassis intrusion detection, and lockable chassis cover. Supports BIOS/BMCdual flash redundancy design. |

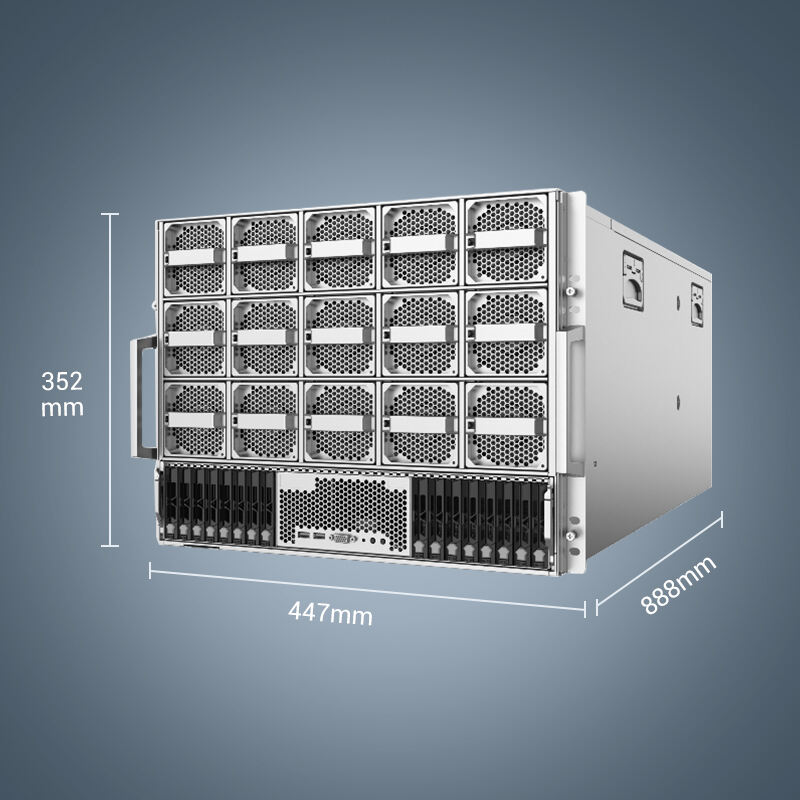

| ChassisDimensions | Width 447mm xHeight 352mmx Depth 888mm |
| Temperature | Dperating Temperature: 5℃ to 35℃ Storage Temperature:-40℃t065℃ |
| Humidty | Dperating Relative Humidty: 8%to 90% (nan-condensing)Storage Relafive Humidity: 5% to 95% (non-condensihng) |
